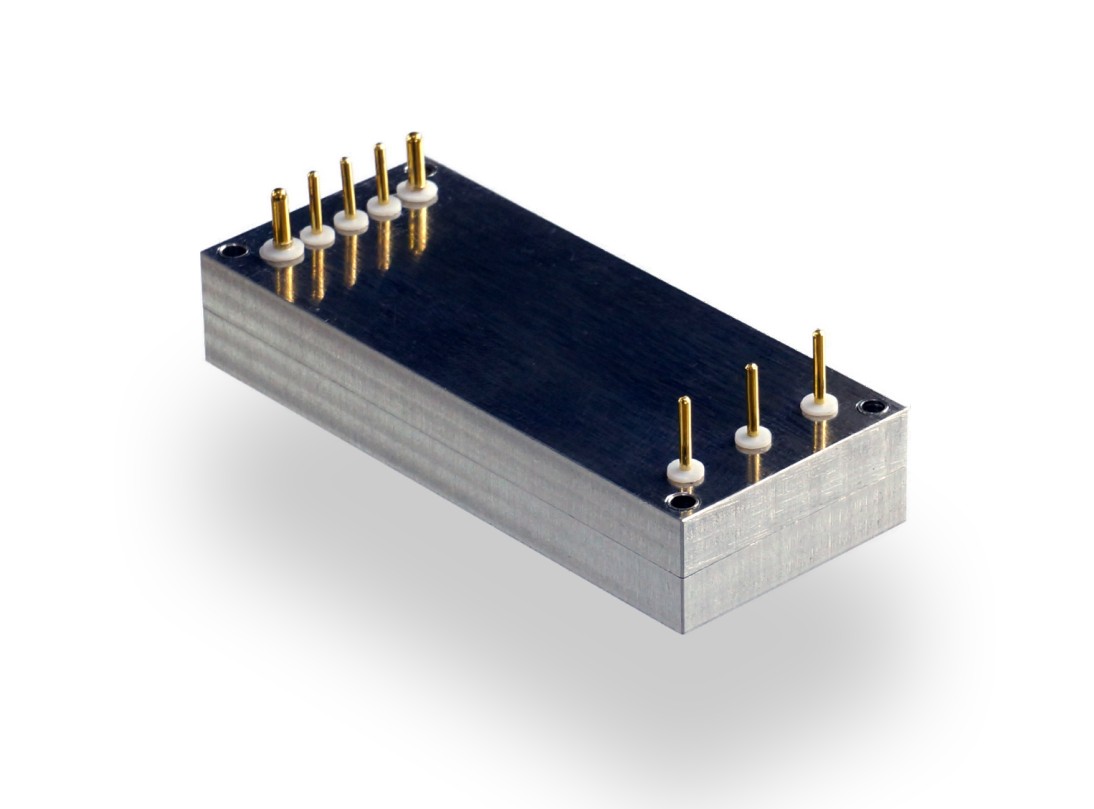

E08 Series Quarter Brick 300W/25A, Efficiency> 90%
Model：E08 Series
The E08 Series provides three standard outputs including 28V/11A, 12V/25A, and 5V/60A from 18~36V or 36~75V input ranges with industry standard 1/8-Brick pin assignment that operates at -40ºC~+110ºC case temperature range. The efficient converter core is designed with patented “Buck-Reset Forward” topology at 450KHz switching frequency for efficiently delivering more power to achieve 93% of conversion efficiency and 360W/in3 power density.
